The table below shows the list of linear bar-codes supported by Stimulsoft Reports.
-
|
Type |
Length |
Check symbols |
Checksum algorithm |
0-9 |
A-Z |
a-z |
other symbols |
|
UPC-A |
12 |
1 |
modulo-10 |
+ |
|||
|
UPC-E |
8 |
1 |
modulo-10 |
+ |
|
|
|
|
EAN-13 |
13 |
1 |
modulo-10 |
+ |
|||
|
EAN-8 |
8 |
1 |
modulo-10 |
+ |
|
|
|
|
EAN-128a |
var |
1 |
modulo-103 |
+ |
+ |
ASCII 0 to 95 |
|
|
EAN-128b |
var |
1 |
modulo-103 |
+ |
+ |
+ |
ASCII 32 to 127 |
|
EAN-128c |
var |
1 |
modulo-103 |
+ |
|||
|
ITF-14 |
14 |
1 |
modulo-10 |
+ |
|
|
|
|
JAN-13 |
13 |
1 |
modulo-10 |
+ |
|||
|
JAN-8 |
8 |
1 |
modulo-10 |
+ |
|
|
|
|
ISBN-10 |
10 |
1 |
modulo-10 |
+ |
|||
|
ISBN-13 |
13 |
1 |
modulo-10 |
+ |
|
|
|
|
Pharmacode |
1..6 |
- |
- |
int 3..131070 |
|||
|
Plessey |
var |
0-2 |
modulo-10/11 |
+ |
A B C D E F |
|
|
|
Msi |
var |
0-2 |
modulo-10/11 |
+ |
|||
|
2of5 Standard |
var |
- |
- |
+ |
|
|
|
|
2of5 Interleaved |
var |
- |
- |
+ |
|||
|
FIM |
1 |
- |
- |
A B C D |
|
|
|
|
Codabar |
var |
- |
- |
+ |
- $ : / . + |
||
|
Postnet |
5, 9, 11 |
1 |
modulo-10 |
+ |
|
|
|
|
Australia Post |
10[+var] |
4 |
ReedSolomon |
+ |
|||
|
Code 11 |
var |
0-2, A |
modulo-11 |
+ |
- |
|
|
|
Code 39 |
var |
0-1 |
modulo-43 |
+ |
+ |
- . $ / + % space |
|
|
Code 39 ext |
var |
0-1 |
modulo-43 |
+ |
+ |
+ |
full ASCII |
|
Code 93 |
var |
2 |
modulo-47 |
+ |
+ |
-.$/+% space |
|
|
Code 93 ext |
var |
2 |
modulo-47 |
+ |
+ |
+ |
full ASCII |
|
Code128a |
var |
1 |
modulo-103 |
+ |
+ |
ASCII 0 to 95 |
|
|
Code128b |
var |
1 |
modulo-103 |
+ |
+ |
+ |
ASCII 32 to 127 |
|
Code128c |
var |
1 |
modulo-103 |
+ |
Explanation:
| · | "Length" - is the data length, it is the number of characters, which can the bar-code can encode; "var" means the variable length. |
| · | "Check symbols" - possible number of check digits; "A" means that number of check digits can be chosen automatically. |
| · | "Checksum algorithm" - the algorithm for calculating check digits. |
| · | "0-9", "A-Z", "a-z" - ranges of symbols; + means that the bar-code can encode characters of this range. |
| · | "other symbols" - other symbols which the bar-code can encode. |
Barcode Sizes
Below is a comparison of bar-codes of variable length, which can encode the numbers 0 to 9. All bar-codes have the same input data - the row has "ABCDEFGHIJK", and the same module 20, other parameters set by default.
Coding English Uppercase Letters

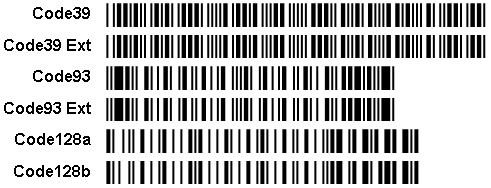

Below is a comparison of the barcodes of variable length which can encode uppercase English letters. All barcodes have the same input data - the row has "ABCDEFGHIJK", and the same module 20, other parameters set by default.
Coding English lowercase letters
Below is a comparison of the barcodes of variable length, which can encode lowercase English letters. All bar-codes have the same input data - the row has "abcdefghijk", and the same module 20, other parameters set by default.
