Editing Label Style Dimensions

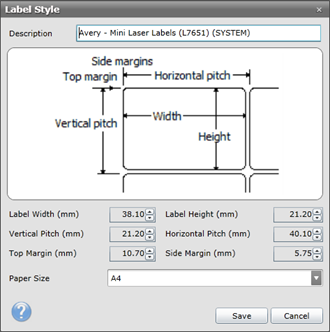

You can make adjustments to a label style using the label style editing window. An example of this interface is shown below:

When creating your own label style, use a ruler to find out each measurement. Use the key picture to help understand what it is you need to measure.

Descriptions of each setting you can alter can be found below. Every setting is in millimetres.

Measurement	Description
Label Width	The width of the label from the left edge to the right.
Label height	The distance between the top and bottom edges.
Vertical Pitch	The distance from the top edge of a label to the top edge of the next label underneath it.
Horizontal Pitch	The width between the left edge to the left edge of the next label.
Side Margin	The distance between the left edge of the label to the left edge of the paper.
Top Margin	The height between the top margin and the top of the paper.

For more information about creating label styles, see the topic Label Styles.
